100GPD Domestic Ro Membrane Filter System For Pure Water Purifier
Product Summary
Water Filter Parts RO 100GPD Reverse Osmosis Membrane for Pure Water Purifier Reverse osmosis membrane is the core element of realizing reverse osmosis water filter, and it is an artificial semi-permeable membrane with certain characteristics made by simulating biological semi-permeable membrane.Our ...
Basic Properties
Place of Origin:
CHINA
Brand Name:
Purple Horn
Certification:
CE, RoHS, ISO9001, NSF
Model Number:
BW-2012-100
Trading Properties
Minimum Order Quantity:
1
Price:
Negotiable
Payment Terms:
L/C, T/T, D/P, MoneyGram, Western Union, D/A
Supply Ability:
30000 PCS /Month
Product Description

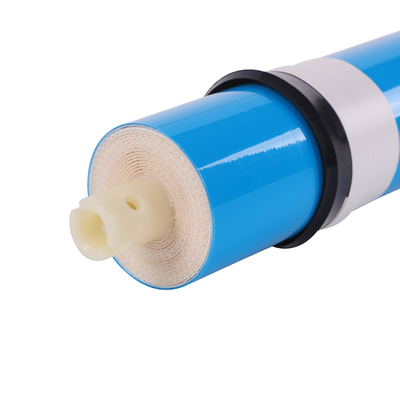

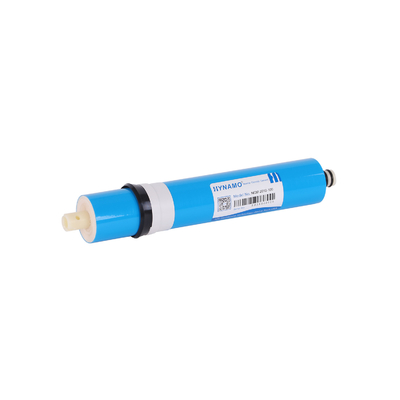

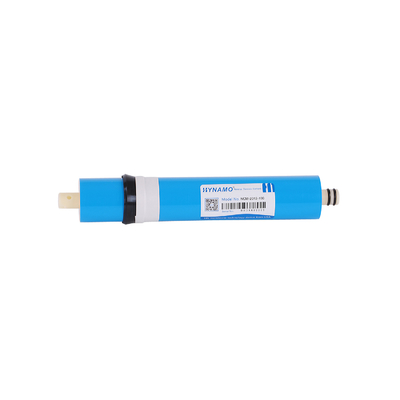

Water Filter Parts RO 100GPD Reverse Osmosis Membrane for Pure Water Purifier
Reverse osmosis membrane is the core element of realizing reverse osmosis water filter, and it is an artificial semi-permeable membrane with certain characteristics made by simulating biological semi-permeable membrane.Our membrane elements use the world's advanced membrane technology and fully automatic production equipment to ensure that the quality of each product is guaranteed.
Performance
| TYPE | BW-1812-50 | BW-2012-75 | BW-2012-100 | BW-2012-150 |
| Rejection Rate | 97% | 97% | 97% | 96% |
| Permeate Flow GPD(m³) | 50(0.19) | 75(0.28) | 100(0.38) | 150(0.57) |
| Test Pressure | 60psi(0.41MPa) | 70psi(0.5MPa) | ||
| Max. Feedwater TDS | 1000 | |||
| PH Rate Rang of Operation | 3-10 | |||
| Max. Operation Temperature | 45ºC | |||
| Recovery Rate of Single Membrane | 15% | |||
| Model No. | A(Inch/mm) | B(Inch/mm) | C(Inch/mm) | D(Inch/mm) | E(Inch/mm) |
| BW-1812-50 | 11.74/298 | 1.70/44 | 0.68/17 | 0.87/22 | 10.0/254 |
| BW-2012-75 | 11.74/298 | 1.75/45.5 | 0.68/17 | 0.87/22 | 10.0/254 |
| BW-2012-100 | 11.74/298 | 1.8/46.5 | 0.68/17 | 0.87/22 | 10.0/254 |
| BW-2012-150 | 11.74/298 | 1.9/48 | 0.68/17 | 0.87/22 | 10.0/254 |
- When PH is above 10, the Maximum Temperature of Continuous Operation is 35ºC.
- Under certain conditions, the presence of free chlorine and other oxidants in the water may cause serious membrane damage, which doesn't belong to product warranty range.
This standard specifies product specifications for reverse osmosis membrane elements for household and similar purposes (here in after referred to as reverse osmosis elements) .This standard applicable to reverse osmosis membrane elements that use municipal tap water or centralized water supply as raw water for use in homes and similar places.
FAQ:
Q: How to pay?
A: TT and L/C are acceptable and TT will be more appreciated. 30% deposit before producing, 70% balanced against the copy of B/L.
Q: What is the delivery time?
A: Usually within 15days. Also depends on order quantities.
Q: Can the package be customized by our own logo ?
A: Yes, the package can be customized your logo, but the MOQ will be higher for which we can discuss as per the specific orders.
Q: How to install after the products arriving destination?
A: We will provide detailed illustrations to you. And we can also provide guide to your workers how to use it and how to maintain
it.
Q:What's the certification do you have?
A: We have NSF, ISO9001, OHSAS18001, ISO14001 Certifications.
A: TT and L/C are acceptable and TT will be more appreciated. 30% deposit before producing, 70% balanced against the copy of B/L.
Q: What is the delivery time?
A: Usually within 15days. Also depends on order quantities.
Q: Can the package be customized by our own logo ?
A: Yes, the package can be customized your logo, but the MOQ will be higher for which we can discuss as per the specific orders.
Q: How to install after the products arriving destination?
A: We will provide detailed illustrations to you. And we can also provide guide to your workers how to use it and how to maintain
it.
Q:What's the certification do you have?
A: We have NSF, ISO9001, OHSAS18001, ISO14001 Certifications.
Product Details
Highlight:
Domestic Membrane
,Domestic Ro Membrane filter
,reverse osmosis system 100 gpd
Type:
Reverse Osmosis Membrane
Model NO.:
BW-2012-100
Desalination:
97%
Capacity:
100 GPD
Certification:
CE, RoHS, ISO9001, NSF
Warranty:
1 Year
Working Up:
1000 Ppm
Operation Pressure:
70psi
Place Of Origin:
CHINA
