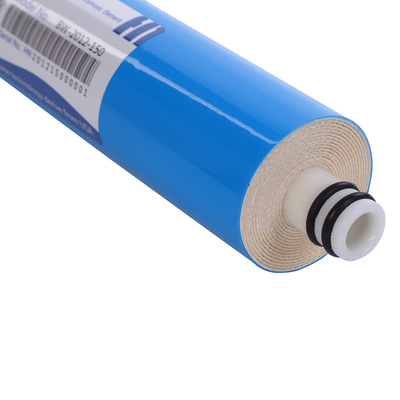

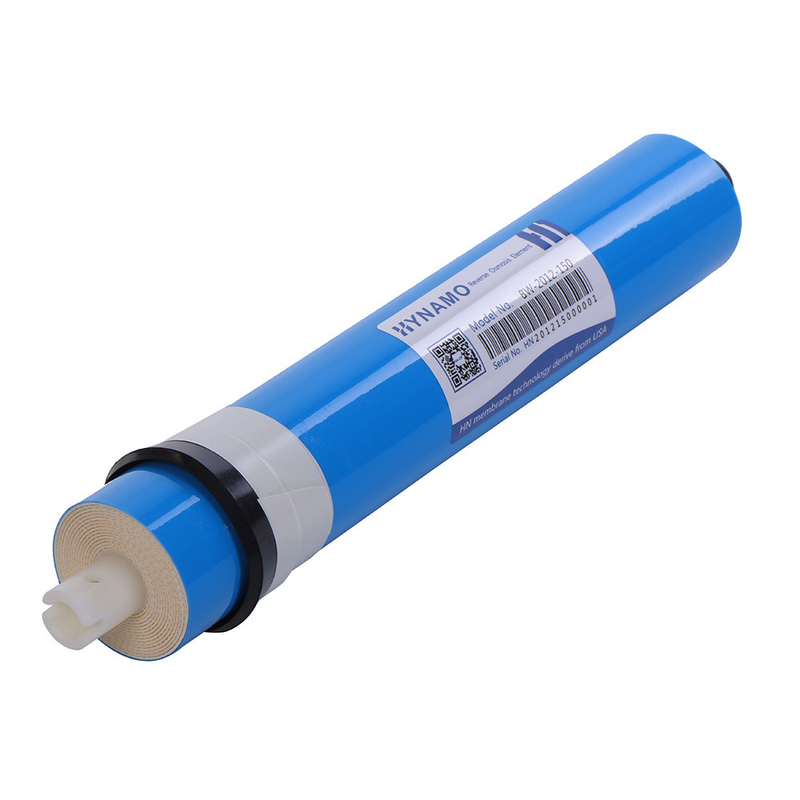

150 Gpd Ro Membrane System Water Purifier Spare Parts BW-2012-150
Widely Used 150G Water Purifier Spare Parts Reverse Osmosis Membrane RO Water Filter
Domestic RO membrane elements are spiral wound, composite polyamide membrane elements for Tap Water and Well Water treatment in low salinity application. These membranes are characterized by a very low operating feed pressure, normally is from 65psi(0.45MPa) and result in higher salt rejection rate, above 96%. These membranes are designed for domestic/commercial water treatment applications, such as the treatment of low salinity waters for home, residence, hospital, laboratory, shop, store,......
Performance
| TYPE | BW-1812-50 | BW-2012-75 | BW-2012-100 | BW-2012-150 |
| Rejection Rate | 97% | 97% | 97% | 96% |
| Permeate Flow GPD(m³) | 50(0.19) | 75(0.28) | 100(0.38) | 150(0.57) |
| Test Pressure | 60psi(0.41MPa) | 70psi(0.5MPa) | ||
| Max. Feedwater TDS | 1000 | |||
| PH Rate Rang of Operation | 3-10 | |||
| Max. Operation Temperature | 45ºC | |||
| Recovery Rate of Single Membrane | 15% | |||
Membrane Dimention
| Model No. | A(Inch/mm) | B(Inch/mm) | C(Inch/mm) | D(Inch/mm) | E(Inch/mm) |
| BW-1812-50 | 11.74/298 | 1.70/44 | 0.68/17 | 0.87/22 | 10.0/254 |
| BW-2012-75 | 11.74/298 | 1.75/45.5 | 0.68/17 | 0.87/22 | 10.0/254 |
| BW-2012-100 | 11.74/298 | 1.8/46.5 | 0.68/17 | 0.87/22 | 10.0/254 |
| BW-2012-150 | 11.74/298 | 1.9/48 | 0.68/17 | 0.87/22 | 10.0/254 |
- When PH is above 10, the Maximum Temperature of Continuous Operation is 35ºC.
- Under certain conditions, the presence of free chlorine and other oxidants in the water may cause serious membrane damage, which doesn't belong to product warranty range.
Our membrane elements are widely used in water treatment and material separation. The special design of the cover ,and the wider gridding ensure to improve the impact resistant and antipollution property. Besides, strict management system combine with inspection system of core technology remains stable for membranes.
FAQ:
A: TT and L/C are acceptable and TT will be more appreciated. 30% deposit before producing, 70% balanced against the copy of B/L.
Q: What is the delivery time?
A: Usually within 15days. Also depends on order quantities.
Q: Can the package be customized by our own logo ?
A: Yes, the package can be customized your logo, but the MOQ will be higher for which we can discuss as per the specific orders.
Q: How to install after the products arriving destination?
A: We will provide detailed illustrations to you. And we can also provide guide to your workers how to use it and how to maintain
it.
Q:What's the certification do you have?
A: We have NSF, ISO9001, OHSAS18001, ISO14001 Certifications.
