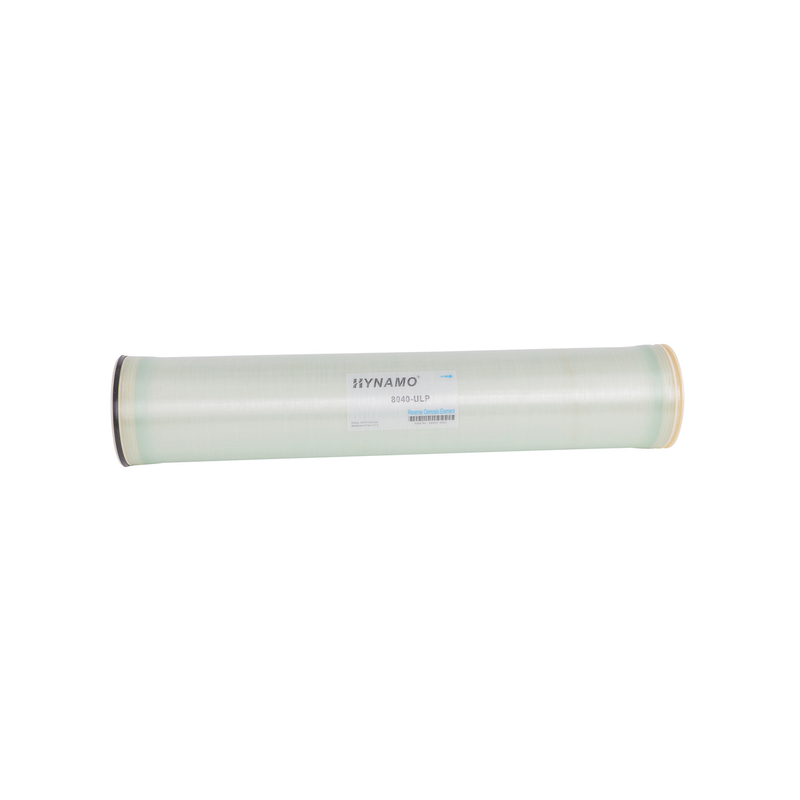

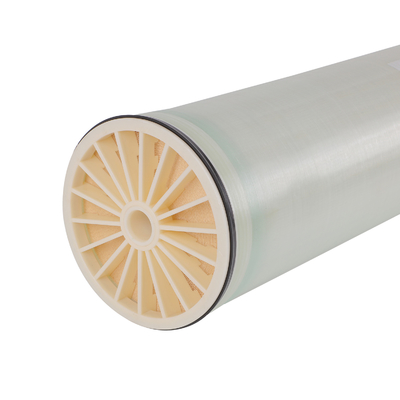

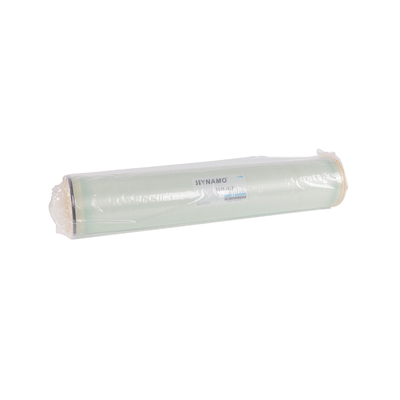

ULP 8040 Industrial RO Membrane Water Purifier Reverse Osmosis 10500GPD
Industrial RO Water Purifier 8040-ULP Reverse Osmosis Membrane for RO Plant
Reverse osmosis membranes can be used for a variety of fluid separations. Currently, the most widely used reverse osmosis membranes are cross-linked aromatic polyamide reverse osmosis membranes. Usually, m-phenylenediamine and trimesoyl chloride are used for interfacial polycondensation on the surface of porous polysulfone supported membranes. A polyamide layer is formed. The polyamide layer obtained by the reaction is the key to influence the water permeability and salt retardation rate. Therefore, focusing on the interfacial polycondensation reaction and optimizing the polyamide layer in order to obtain a reverse osmosis membrane with large flux and high salt removal rate has always been the direction of many researchers.
Ultra Low Pressure Reverse Osmosis Membrane Element could filter the water and salt under very low operation pressure, and get the rate as high as the membrane of normal low pressure. The operation pressure could get 7 bar, half of the normal low pressure membrane. Suitable for desalination from the water which with good quality. Application range: Food industry, Drinking water industrial, Electric power feedwater, bioindustr, etc.
| Model Number | Description | BW-8040-ULP |
| Performance & Test Condition |
The Desalination Rate % | 99.2% |
| Water Rate GDP | 10500 | |
| The Test pressure | 150psi | |
| Test solution Temperature | 25± 1ºC | |
| Test Solution Concentration NaCl | 2000ppm | |
| Test solution pH value | 6.5-7.5 | |
| Recovery Of Single-Branch Membrane Element | 15% | |
| Feed water SDI | 5 |
Operating Limit:
| Maximum Operating Temperature | 113ºF(45ºC) |
| Maximum Working Pressure | 600psi(41.0 bar) |
| The high pressure drop | 15psi (1.0bar) |
| Continuously operating PH range a | 3-10 |
| Short wash PH range (30min) b | 2-12 |
| Maximum feed water SDI | SDI 5 |
| Tolerance Of Free Chlorine | <0.1ppm |
| Maximum pressure drop for single membrane element | 15psi(0.1Mpa) |
- When PH is above 10, the Maximum Temperature of Continuous Operation is 35ºC.
- Under certain conditions, the presence of free chlorine and other oxidants in the water may cause serious membrane damage, which doesn't belong to product warranty range.
FAQ:
Q: How to pay?
A: TT and L/C are acceptable and TT will be more appreciated. 30% deposit before producing, 70% balanced against the copy of B/L.
Q: What is the delivery time?
A: Usually within 15days. Also depends on order quantities.
Q: Can the package be customized by our own logo ?
A: Yes, the package can be customized your logo, but the MOQ will be higher for which we can discuss as per the specific orders.
Q: How to install after the products arriving destination?
A: We will provide detailed illustrations to you. And we can also provide guide to your workers how to use it and how to maintain
it.
Q:What's the certification do you have?
A: We have NSF, ISO9001, OHSAS18001, ISO14001 Certifications.
