Ulp21-2521 Ulp21-2540 ULP 4021 Low Pressure Ro Membrane Water Treatment Commercial
Product Summary
Commercial Water Treatment Low Pressure Reverse Osmosis RO Membrane (2521 / 2540 / 4021) Commercial reverse osmosis membrane elements are widely used in electric power, petrochemical, steel, pharmaceutical, food and beverage, municipal and environmental protection fields. It plays an important role ...
Basic Properties
Place of Origin:
CHINA
Brand Name:
Purple Horn
Certification:
CE, RoHS, ISO9001, NSF
Model Number:
BW-4021-ULP
Trading Properties
Minimum Order Quantity:
1
Price:
Negotiable
Payment Terms:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:
30000 PCS /Month
Product Description

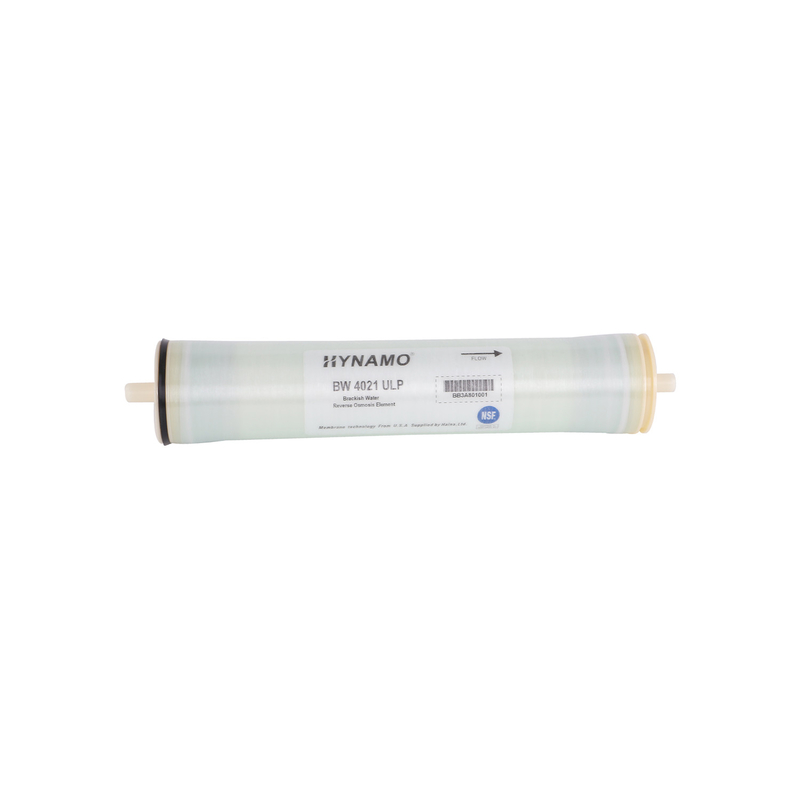

Commercial Water Treatment Low Pressure Reverse Osmosis RO Membrane (2521 / 2540 / 4021)
Commercial reverse osmosis membrane elements are widely used in electric power, petrochemical, steel, pharmaceutical, food and beverage, municipal and environmental protection fields. It plays an important role in seawater desalination and brackish water desalination, boiler water supply, industrial pure water and electronic ultrapure water equipment, drinking pure water, wastewater treatment and special separation processes.
| Model Number | Description | 4021-ULP |
| Performance & Test Condition |
The Desalination Rate % | 99% |
| Water Rate GDP | 950 | |
| The Test pressure | `150si | |
| Test solution Temperature | 25± 1ºC | |
| Test Solution Concentration NaCl | 1500PPM | |
| Recovery Of Single-Branch Membrane Element | 8% | |
| Feed water SDI | 5 |
Dimension of Membrane Element
4021: A:533.4mm B:101mm C:19mm D:26.7mm
Operating Limit:
| Maximum Operating Temperature | 113ºF(45ºC) |
| Maximum Working Pressure | 600psi(41.0 bar) |
| The high pressure drop | 15psi (1.0bar) |
| Continuously operating PH range a | 2-11 |
| Short wash PH range (30min) b | 1-12 |
| Maximum feed water SDI | ≤ 5 |
| Tolerance Of Free Chlorine | <0.1ppm |
| Maximum pressure drop for single membrane element | 15psi(0.1Mpa) |
- When PH is above 10, the Maximum Temperature of Continuous Operation is 35ºC.
- Under certain conditions, the presence of free chlorine and other oxidants in the water may cause serious membrane damage, which doesn't belong to product warranty range.
Commercial RO system can be customized based on individual design needs to include chemical dosing, cleaning skids, antiscalant, filters and more.
FAQ:
Q: How to buy your products?
A: we need some essential information, water quality, designed technological process, site engineering conditions (contact us for details),then we will design the uitable solutions for you and prepare to give you best price.
Q: How to pay?
A: TT and L/C are acceptable and TT will be more appreciated. 30% deposit before producing, 70% balanced against the copy of B/L.
Q: What is the delivery time?
A: Usually within 15days. Also depends on order quantities.
Q: Can the package be customized by our own logo ?
A: Yes, We provide ODM and OEM,the package can be customized your logo.
Q: How to pay?
A: TT and L/C are acceptable and TT will be more appreciated. 30% deposit before producing, 70% balanced against the copy of B/L.
Q: What is the delivery time?
A: Usually within 15days. Also depends on order quantities.
Q: Can the package be customized by our own logo ?
A: Yes, We provide ODM and OEM,the package can be customized your logo.
Q: How to install after the products arriving destination?
A: We will provide detailed illustrations to you. And we can also provide guide to your workers how to use it and how to maintain
it.
Q:What's the certification do you have?
A: We have ISO9001, NSF,ROHS Certifications.
Product Details
Highlight:
ULP 4021
,ulp21-2540
,ulp21-2521
Type:
Reverse Osmosis Membrane
Model NO.:
BW-4021-ULP
Salt Rejection Rate:
99%
Capacity:
950GPD
Operation Pressure:
150psi
Certification:
ISO9001, RoHS, CE, NSF
Warranty:
3 Years
Max. Operation Pressure:
600psi
Place Of Origin:
CHINA
