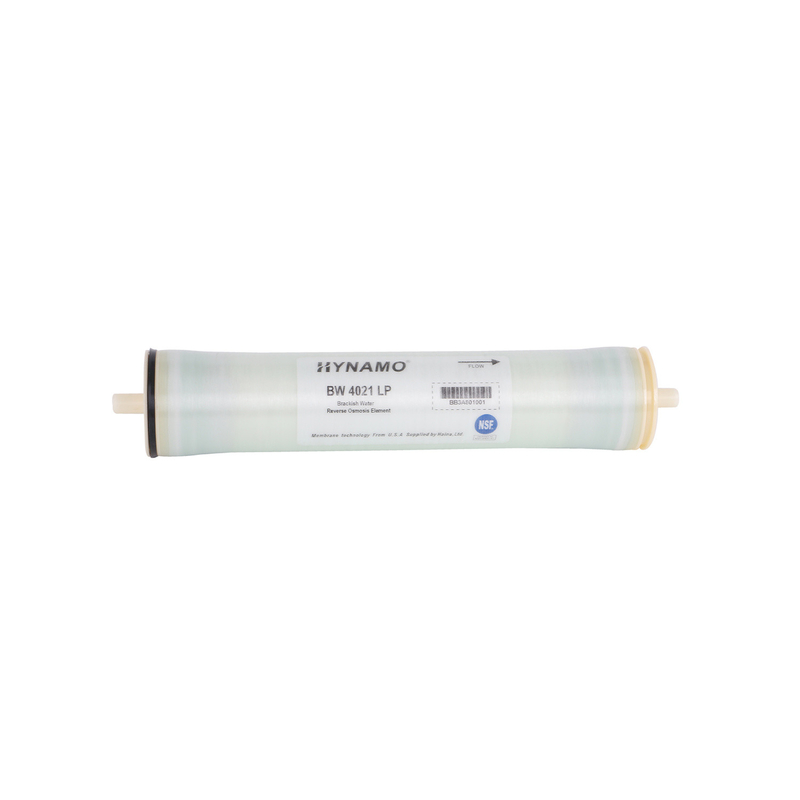

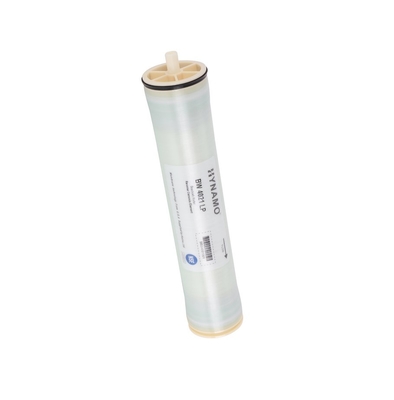

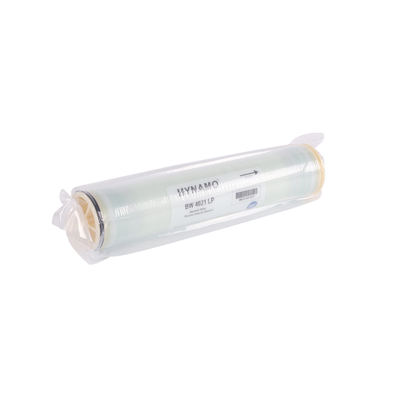

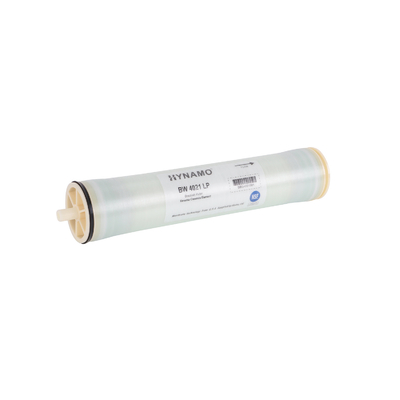

Low Pressure Reverse Osmosis Membrane Cartridge For RO Water System Lp-4021
4021 Low Pressure Reverse Osmosis RO Membrane for RO Water System
Commercial reverse osmosis membrane elements are widely used in electric power, petrochemical, steel, pharmaceutical, food and beverage, municipal and environmental protection fields. It plays an important role in seawater desalination and brackish water desalination, boiler water supply, industrial pure water and electronic ultrapure water equipment, drinking pure water, wastewater treatment and special separation processes.
| Model Number | Description | 4021-LP |
| Performance & Test Condition |
The Desalination Rate % | 99.3% |
| Water Rate GDP | 950 | |
| The Test pressure | 225psi | |
| Test solution Temperature | 25± 1ºC | |
| Test Solution Concentration NaCl | 1500PPM | |
| Recovery Of Single-Branch Membrane Element | 8% | |
| Feed water SDI | 5 |
Dimension of Membrane Element
4021: A:533.4mm B:101mm C:19mm D:26.7mm
Operating Limit:
| Maximum Operating Temperature | 113ºF(45ºC) |
| Maximum Working Pressure | 600psi(41.0 bar) |
| The high pressure drop | 15psi (1.0bar) |
| Continuously operating PH range a | 2-11 |
| Short wash PH range (30min) b | 1-12 |
| Maximum feed water SDI | ≤ 5 |
| Tolerance Of Free Chlorine | <0.1ppm |
| Maximum pressure drop for single membrane element | 15psi(0.1Mpa) |
- When PH is above 10, the Maximum Temperature of Continuous Operation is 35ºC.
- Under certain conditions, the presence of free chlorine and other oxidants in the water may cause serious membrane damage, which doesn't belong to product warranty range.
RO membrane continues to increase in demand with the growth of the water treatment sector. However, fouling and scaling are its major drawbacks. Fouling occurs in both cellulose-based and thin-film composite membranes. So we have professional R&D and after sale service for our customers.
FAQ:
Q: How to pay?
A: TT and L/C are acceptable and TT will be more appreciated. 30% deposit before producing, 70% balanced against the copy of B/L.
Q: What is the delivery time?
A: Usually within 15days. Also depends on order quantities.
Q: Can the package be customized by our own logo ?
A: Yes, We provide ODM and OEM,the package can be customized your logo.
Q: How to install after the products arriving destination?
A: We will provide detailed illustrations to you. And we can also provide guide to your workers how to use it and how to maintain
it.
Q:What's the certification do you have?
A: We have ISO9001, NSF,ROHS Certifications.
