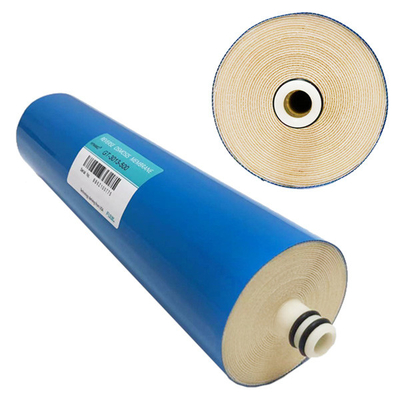

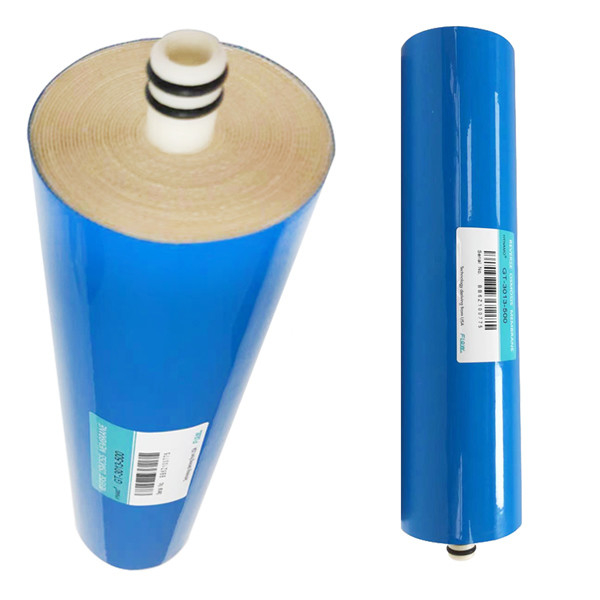

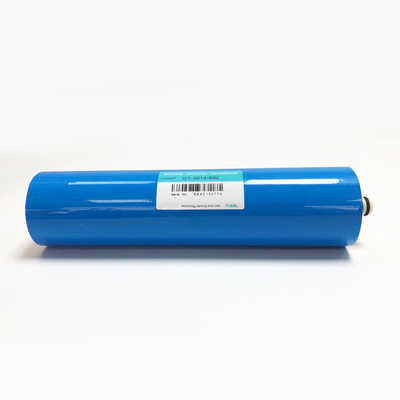

High TDS Dry Reverse Osmosis Element High Rejection 500GPD 150 Psi
GT-3013-500GPD RO Membrane Element for RO System Water Treatment
There are two types of reverse osmosis membranes: asymmetric membranes and homogeneous membranes. Currently, the membrane materials used are mainly cellulose acetate and aromatic polyamide. Its components include hollow fiber type, roll type, plate frame type and tube type. It can be used for separation, concentration, purification and other chemical unit operations, mainly for pure water preparation and water treatment industry.
Performance
| Model | GT-3013-500 |
| Operation Pressure (psi) | 90 |
| Highest Operation Pressure (psi) | 150 |
| Application | For Pure water producing |
| Test Solution Concentration (ppm) | 250 |
| Recovery Rate % | 50%±5 |
| Stable Rejection Rate % | 97 |
| Flow Rate (GPD) | 500 |
| Max. Pressure Difference (psi) | 15 |
| Max. Feed Water SDI | 5 |
| Acceptance capacity of free Chlorine | ≤0.1 |
| PH Range of feed water as continious operation | 2-11 |
Note:1. The Max. continous operation temperature is 35ºC when PH rate over 10.
2.In certain conditions,if would cause membrane breakage if the free chlorine or the other oxidant in feedwater.The production quality guarantee range is notincluded membrane breakage by oxiadation.
Operating Limit:
| Maximum Operating Temperature | 113ºF(45ºC) |
| Maximum Working Pressure | 150psi(10bar) |
| Maximum Feed Flow | 2.0gpm(7.6lpm) |
| Continuously operating PH range a | 2-11 |
| Short wash PH range (30min) b | 1-13 |
| Maximum feed water SDI | SDI 5 |
| Tolerance Of Free Chlorine | <0.1ppm |
GT-3013-500: A:13.0mm B:3.0mm C:0.68mm D:0.75mm E:11.5mm
Why choose us :
1. Professional manufacturer : More than 18 years experience in prodcuing pure water treatment system .
2. Strict time control : Ensure delivery time.
3. Factory strength: Automatic production line, more than 100 workers.
4. After-sales service : 24 Hours online service.
5. Customized is available. Sample order is available.
FAQ:
1.Q: Can you put our Logo on the product?
A: Sure,we can offer logo customized survice. More than 200pcs, logo printing is for free.
2. Q: What about the lead time for mass production?
A: Honestly, it depends on the order quantity and the season you place the order. But as a professional manufacturer, we can always achieve your deadline.
3. Q: Can you offer sample before mass order?is it free or extra?
A:Yes samples will be kindly arranged for quality check, we could offer the sample for free charge but do not pay the cost of freight.please contact us for more details.
4. Q: Can I visit your factory?
A: Sure,welcome to contact us if you would like to visit.
5.Q: Are you manufacturer or trade company?
A: We are factory and OEM are available.
6. Q:What is your MOQ?
A:Our ready stock MOQ is 1pcs.For custom logo order MOQ is 500pcs,can mox different size.
7.Q: How about your product quality?
A:All of our product has been quality checked before shipping.Any quality problem when you receive the products, pls contact us.
8. Q:What is your products delivery time?
A:For ready stock, delivery day is within 7 days.
9: Q:What is your terms of payment?
A:30% T/T in advance ,balance before shippment or L/C.
