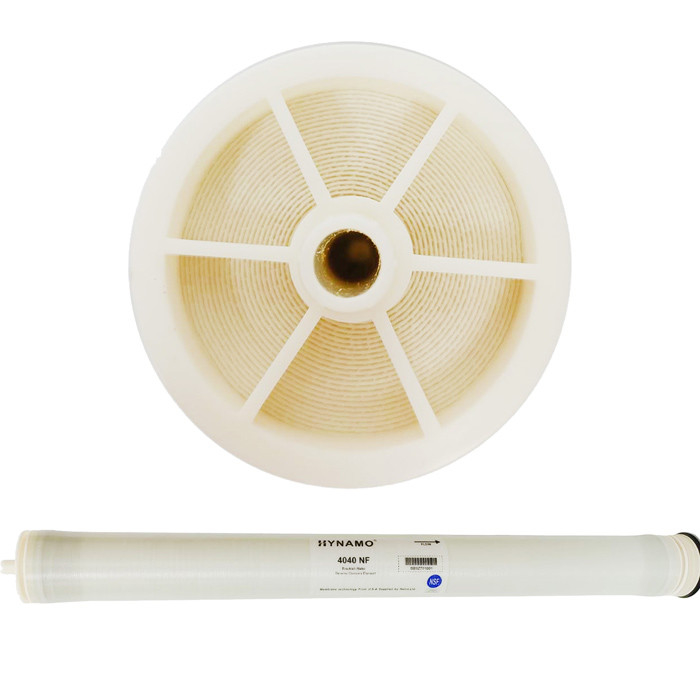

Nano Filtration NF RO Membrane 40 Inch Sewage Municipal Direct Drinking Water
Nanofiltration Membrane 4040 Industrial Sewage Municipal Direct Drinking Water
| Model Number | Description | 4040-NF |
| Performance & Test Condition |
The Desalination Rate % | 98% |
| Water Rate GDP | 1800 | |
| The Test pressure | 100psi | |
| Test solution Temperature | 25± 1ºC | |
| Test Solution Concentration NaCl | 2.0-11.0 | |
| Recovery Of Single-Branch Membrane Element | 15% | |
| Feed water SDI | 5 |
Operating Limit:
| Maximum Operating Temperature | 113ºF(45ºC) |
| Maximum Working Pressure | 600psi(41.0 bar) |
| The high pressure drop | 15psi (1.0bar) |
| Continuously operating PH range a | 3-10 |
| Short wash PH range (30min) b | 2-12 |
| Maximum feed water SDI | SDI 5 |
| Tolerance Of Free Chlorine | <0.1ppm |
| Maximum pressure drop for single membrane element | 15psi(0.1Mpa) |
- When PH is above 10, the Maximum Temperature of Continuous Operation is 35ºC.
- Under certain conditions, the presence of free chlorine and other oxidants in the water may cause serious membrane damage, which doesn't belong to product warranty range.
The transmembrane pressure difference required for NF membrane separation is generally 0.5 to 2.0 MPa, which is 0.5 to 3 MPa lower than the pressure difference that must be applied to achieve the same osmotic energy with reverse osmosis membranes. Under the same applied pressure, the flux of nanofiltration is much larger than that of reverse osmosis, and when the flux is constant, the pressure required for nanofiltration is much lower than that of reverse osmosis. Therefore, when nanofiltration is used instead of reverse osmosis, the "concentration" process can be carried out more efficiently and quickly, and a larger "concentration" multiple can be achieved.
Features:
- High Rejection & Flow Rate
- Made in the USA Technology
- Manufactured in our ISO 9001:2015 Certified Facilities
- 100% Performance and Quality Tested
- Backed by our Experienced Technical Support Staff
- High Quality for Consistent and Reliable Performance
- Uses the most advanced membrane film technology and manufacturing processes
- Standard dimensions to fit in commonly available housings
FAQ:
1. Q: Are you manufacturer?
A: Yes, we are manufacture founded in 2005.
2. Q: What's your main products?
A: We provide Residential, Commercial and Industrial water treatment as well as relevant spare parts.
3. Q: Do products have any certifications?
A: Yes, all products are CE NSF certified. Some even ISO certified.
4. Q: Can you provide samples?
A: Yes, We can support providing sample service.
5. Q: How long does production take?
A: Sample order within one week; large order takes 15 to 25 days.
6. Q: How long is the warranty?
A: Warranty 1 year for domestic membrane and 3 years for industrial membrane.
7. Q: What's the payment item?
A: T/T, L/C, Paypal, D/P and etc,.
8. Q: Is OEM available?
A: Yes, welcome OEM.
