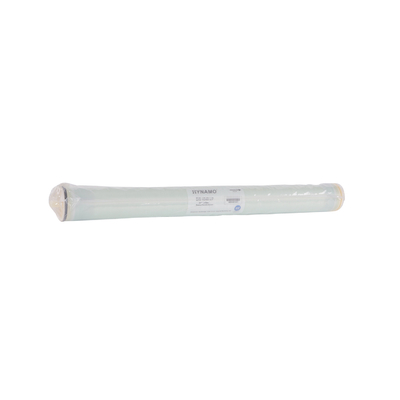

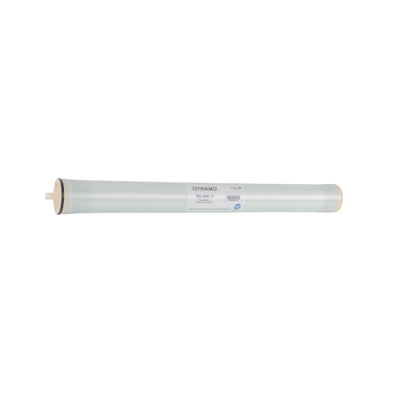

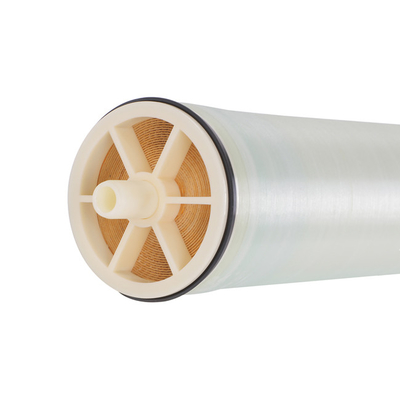

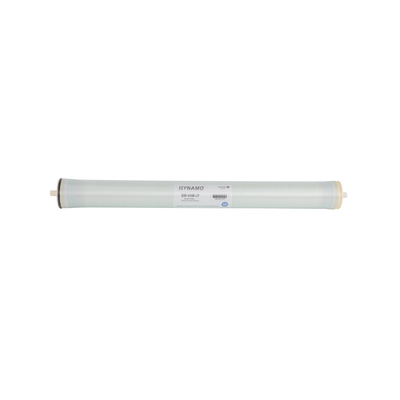

4040 Ultra Low Pressure Ro Membrane 4040 LP For Water Treatment Purifier System
Product Summary
BW-4040-LP Industrial Low Pressure RO Membrane for Water Treatment Purifier System Reverse osmosis membranes can be used for a variety of fluid separations. Currently, the most widely used reverse osmosis membranes are cross-linked aromatic polyamide reverse osmosis membranes. Usually, m-phenylenedi...
Basic Properties
Place of Origin:
CHINA
Brand Name:
Purple Horn
Certification:
CE, RoHS, ISO9001, NSF
Model Number:
BW-4040-LP
Trading Properties
Minimum Order Quantity:
1
Price:
Negotiable
Payment Terms:
L/C, T/T, D/P, MoneyGram, Western Union, D/A
Supply Ability:
30000 PCS /Month
Product Description
BW-4040-LP Industrial Low Pressure RO Membrane for Water Treatment Purifier System
Reverse osmosis membranes can be used for a variety of fluid separations. Currently, the most widely used reverse osmosis membranes are cross-linked aromatic polyamide reverse osmosis membranes. Usually, m-phenylenediamine and trimesoyl chloride are used for interfacial polycondensation on the surface of porous polysulfone supported membranes.
LP brackish water series membrane elements have the characteristics of low-pressure operation, high water production and good desalination performance. It is suitable for high-purity water equipment in the electronics and power industries, industrial water of various scales, and water for various industries such as boiler feed water in power plants.
PERFORMANCE
| Model Number | Description | BW-4040-LP |
| Performance & Test Condition |
The Desalination Rate % | 99.5% |
| Water Rate GDP | 2400 | |
| The Test pressure | 225psi | |
| Test solution Temperature | 25± 1ºC | |
| Test Solution Concentration NaCl | 2000ppm | |
| Test solution pH value | 6.5-7.5 | |
| Recovery Of Single-Branch Membrane Element | 15% | |
| Feed water SDI | 5 |
Dimension of Membrane Element
Operating Limit:
| Maximum Operating Temperature | 113ºF(45ºC) |
| Maximum Working Pressure | 600psi(41.0 bar) |
| The high pressure drop | 15psi (1.0bar) |
| Continuously operating PH range a | 3-10 |
| Short wash PH range (30min) b | 2-12 |
| Maximum feed water SDI | SDI 5 |
| Tolerance Of Free Chlorine | <0.1ppm |
| Maximum pressure drop for single membrane element | 15psi(0.1Mpa) |
- When PH is above 10, the Maximum Temperature of Continuous Operation is 35ºC.
- Under certain conditions, the presence of free chlorine and other oxidants in the water may cause serious membrane damage, which doesn't belong to product warranty range.
FAQ:
Q: How to buy your products?
A: we need some essential information include sewage sources, sewage quality ( COD, BOD,SS),Required Filtered water quality, designed technological process, site engineering conditions (contact us for details),then we will design the uitable solutions for you and prepare to give you best price.
Q: How to pay?
A: TT and L/C are acceptable and TT will be more appreciated. 30% deposit before producing, 70% balanced against the copy of B/L.
Q: What is the delivery time?
A: Usually within 15days. Also depends on order quantities.
Q: Can the package be customized by our own logo ?
A: Yes, the package can be customized your logo, but the MOQ will be higher for which we can discuss as per the specific orders.
Q: How to install after the products arriving destination?
A: We will provide detailed illustrations to you. And we can also provide guide to your workers how to use it and how to maintain
it.
Q:What's the certification do you have?
A: We have NSF, ISO9001, OHSAS18001, ISO14001 Certifications.
Q: How to pay?
A: TT and L/C are acceptable and TT will be more appreciated. 30% deposit before producing, 70% balanced against the copy of B/L.
Q: What is the delivery time?
A: Usually within 15days. Also depends on order quantities.
Q: Can the package be customized by our own logo ?
A: Yes, the package can be customized your logo, but the MOQ will be higher for which we can discuss as per the specific orders.
Q: How to install after the products arriving destination?
A: We will provide detailed illustrations to you. And we can also provide guide to your workers how to use it and how to maintain
it.
Q:What's the certification do you have?
A: We have NSF, ISO9001, OHSAS18001, ISO14001 Certifications.
Product Details
Highlight:
low pressure ro membrane 4040
,4040 ultra low pressure ro membrane
,low pressure reverse osmosis membrane
Type:
Reverse Osmosis Membrane
Model NO.:
BW-4040-LP
Desalination:
99.5%
Capacity:
2400 GPD
Certification:
CE, RoHS, ISO9001, NSF
Warranty:
3 Years
Working Up To:
5000 TDS
Operation Pressure:
225psi
Place Of Origin:
CHINA
