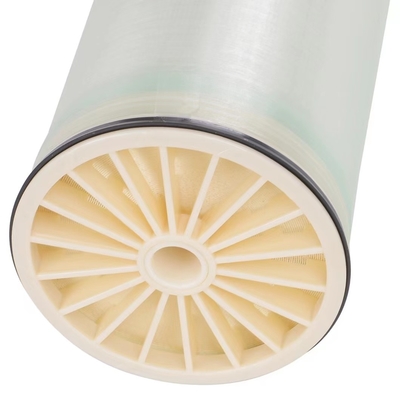

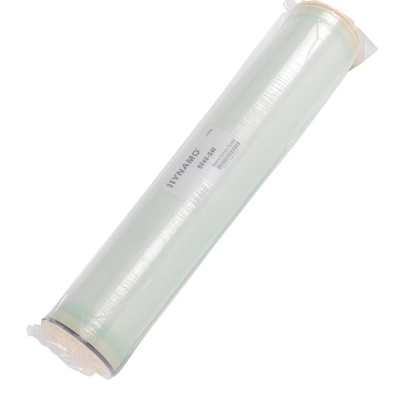

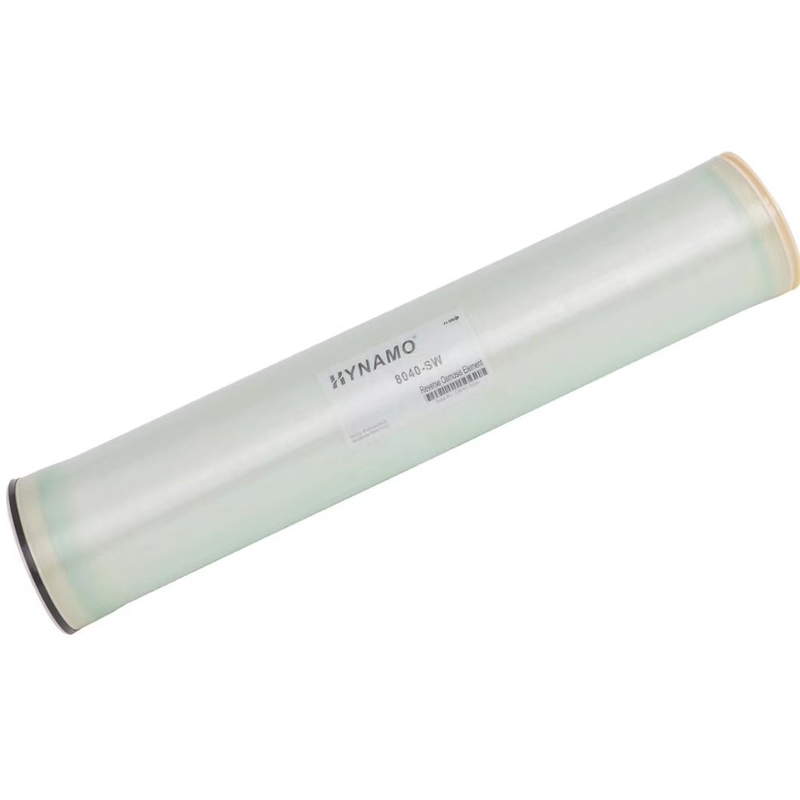

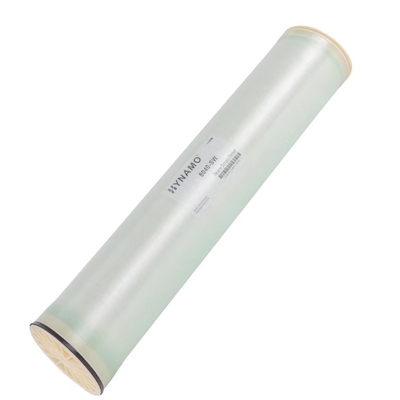

Thin-Film Composite Seawater Reverse Osmosis Membrane Desalination System 800psi
Sea Water Purifier Desalination Reverse Osmosis RO Membrane for Treatment Project
Seawater desalination membrane elements have the characteristics of low pressure, small equipment investment, stable desalination performance. It is suitable for the treatment of seawater and high-concentration brackish water. It can be used for various industrial water treatment such as seawater desalination, high-concentration brackish water desalination, power plant boiler make-up water, etc. It can also be used in various application fields such as wastewater reuse, high value-added concentration recovery such as food and medicine.
| Model Number | Description | SW-8040 |
| Performance & Test Condition |
The Desalination Rate | 99.7% |
| Production | 6000GPD | |
| The Test pressure | 800psi | |
| Test solution Temperature | 25± 1ºC | |
| Test Solution Concentration NaCl | 32000TDS | |
| Test solution PH value | 6.5-7.5 | |
| Recovery Of Single-Branch Membrane Element | 8% | |
| Feed water SDI | ≤5 |
Operating Limit:
| Maximum Operating Temperature | 113ºF(45ºC) |
| Maximum Working Pressure | 600psi(41.0 bar) |
| The high pressure drop | 15psi (1.0bar) |
| Continuously operating PH range a | 3-10 |
| Short wash PH range (30min) b | 2-12 |
| Maximum feed water SDI | SDI 5 |
| Tolerance Of Free Chlorine | <0.1ppm |
| Maximum pressure drop for single membrane element | 15psi(0.1Mpa) |
- When PH is above 10, the Maximum Temperature of Continuous Operation is 35ºC.
- Under certain conditions, the presence of free chlorine and other oxidants in the water may cause serious membrane damage, which doesn't belong to product warranty range.
Over the years, Purple Horn Membrane has continuously launched products, including low-pressure, ultra-low pressure and extra-low pressure reverse osmosis membranes, anti-fouling membranes for highly polluted water or wastewater reuse, high-yield water desalination membranes, and high-selectivity nanofiltration membranes, etc. processing needs in different application fields. Purple Horn Membrane has a professional R&D team, strictly control the performance of membrane elements in production and application. Purple Horn Membrane has got the recognition and long-term cooperation of many domestic and foreign customers with professional technical support and professional after-sales service.
FAQ:
Q: How to pay?
A: TT and L/C are acceptable and TT will be more appreciated. 30% deposit before producing, 70% balanced against the copy of B/L.
Q: What is the delivery time?
A: Usually within 15days. Also depends on order quantities.
Q: Can the package be customized by our own logo ?
A: Yes, the package can be customized your logo, but the MOQ will be higher for which we can discuss as per the specific orders.
Q: How to install after the products arriving destination?
A: We will provide detailed illustrations to you. And we can also provide guide to your workers how to use it and how to maintain
it.
Q:What's the certification do you have?
A: We have NSF, ISO9001, OHSAS18001, ISO14001 Certifications.
