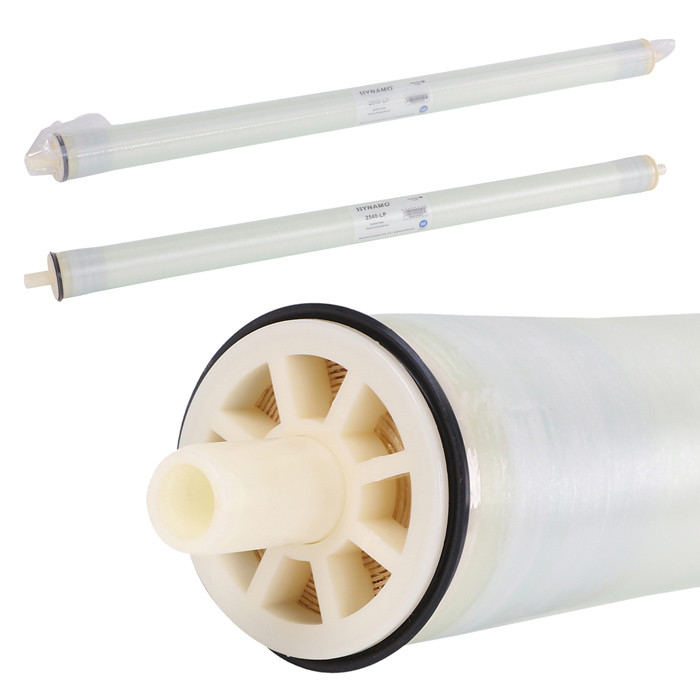

Commercial Industrial Ro Membrane Bw30-2540-LP Brackish Water 750GPD
2540-LP RO Membrane Filter for Industrial & Commercial RO Water Purifier Treatment
In practical applications, the salt solution needs to be replaced continuously before the reverse osmosis pressure rises significantly. In order to effectively use the tangential flow theory, the solution on the surface of the semi permeable membrane needs to be constantly updated. Therefore, the commercial membrane module is designed with one water inlet and two water outlets. The water inlet serves as the water supply inlet, and the water outlet serves as the outlet of treated pure water and concentrated solution respectively.The reverse osmosis membrane is widely used in electric power, petrochemical industry, steel, electronics, medicine, food and beverage, municipal and environmental protection and other fields. It plays an important role in seawater and brackish water desalination, boiler water supply, industrial pure water and electronic grade ultra pure water preparation, drinking water production, wastewater treatment and special separation processes.
Specification
| Model Number | Description | 2540-LP |
| Performance & Test Condition |
The Desalination Rate % | 99.5% |
| Water Rate GDP | 750GPD | |
| The Test pressure | 100si | |
| Test solution Temperature | 25± 1ºC | |
| Test Solution Concentration NaCl | 1500PPM | |
| Recovery Of Single-Branch Membrane Element | 15% | |
| Feed water SDI | 5 |
Operating Limit:
| Maximum Operating Temperature | 113ºF(45ºC) |
| Maximum Working Pressure | 600psi(41.0 bar) |
| The high pressure drop | 15psi (1.0bar) |
| Continuously operating PH range a | 3-10 |
| Short wash PH range (30min) b | 2-12 |
| Maximum feed water SDI | SDI 5 |
| Tolerance Of Free Chlorine | <0.1ppm |
| Maximum pressure drop for single membrane element | 15psi(0.1Mpa) |
- When PH is above 10, the Maximum Temperature of Continuous Operation is 35ºC.
- Under certain conditions, the presence of free chlorine and other oxidants in the water may cause serious membrane damage, which doesn't belong to product warranty range.
DIMENSION
2540:A:1016mm B:60.6mm C:19mm D:33mm
FAQ:
Q: How to pay?
A: TT and L/C are acceptable and TT will be more appreciated. 30% deposit before producing, 70% balanced against the copy of B/L.
Q: What is the delivery time?
A: Usually within 15days. Also depends on order quantities.
Q: Can the package be customized by our own logo ?
A: Yes, the package can be customized your logo, but the MOQ will be higher for which we can discuss as per the specific orders.
Q: How to install after the products arriving destination?
A: We will provide detailed illustrations to you. And we can also provide guide to your workers how to use it and how to maintain
it.
Q:What's the certification do you have?
A: We have NSF, ISO9001, OHSAS18001, ISO14001 Certifications.
