2000 Tds Industrial Ro Membrane 8 Inch 8040 For Water Treatment Purifier System

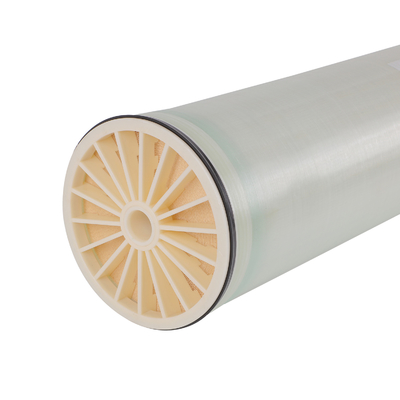

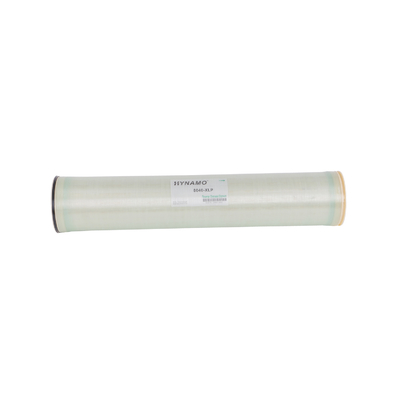

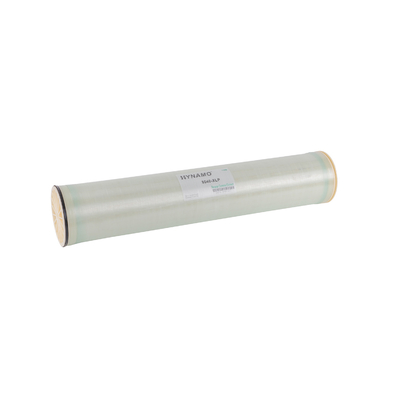

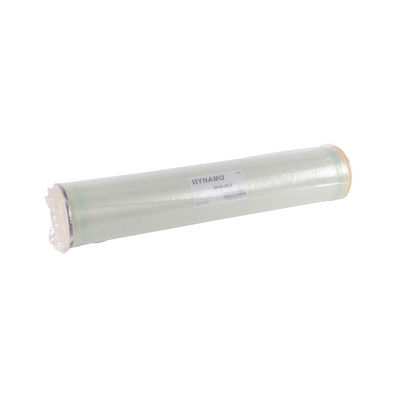

Industrial 8-inch RO Membrane for RO Water Treatment Purifier System
Reverse osmosis membrane is the core element of realizing reverse osmosis water filter, and it is an artificial semi-permeable membrane with certain characteristics made by simulating biological semi-permeable membrane.LP brackish water series membrane elements have the characteristics of low-pressure operation, high water production and good desalination performance. It is suitable for high-purity water equipment in the electronics and power industries, industrial water of various scales, and water for various industries such as boiler feed water in power plants.
Performance
| model | Stable rejection rate(%) | average permeate flowGPD(m3/d) | test condition | ||
| operation pressure psi(Mpa) | test liquid NaCl(ppm) | recovery rate (%) | |||
| 4040-XLP | 98.5 | 2400(9.12) | 100(0.68) | 500 | 15 |
| 4040-ULP | 99.2 | 2400(9.12) | 150(1.02) | 1500 | 15 |
| 4040-LP | 99.5 | 2400(9.12) | 225(1.53) | 2000 | 15 |
| 8040-XLP | 98.5 | 10500(39.9) | 100(0.68) | 500 | 15 |
| 8040-ULP | 99.2 | 10500(39.9) | 150(1.02) | 1500 | 15 |
| 8040-LP | 99.5 | 10500(39.9) | 225(1.53) | 2000 | 15 |
Operating Limit:
| Maximum Operating Temperature | 113ºF(45ºC) |
| Maximum Working Pressure | 600psi(41.0 bar) |
| The high pressure drop | 15psi (1.0bar) |
| Continuously operating PH range a | 3-10 |
| Short wash PH range (30min) b | 2-12 |
| Maximum feed water SDI | SDI 5 |
| Tolerance Of Free Chlorine | <0.1ppm |
| Maximum pressure drop for single membrane element | 15psi(0.1Mpa) |
1.When PH is above 10, the Maximum Temperature of Continuous Operation is 35ºC.
2.Under certain conditions, the presence of free chlorine and other oxidants in the water may cause serious membrane damage, which doesn't belong to product warranty range.
With the rapid development of reverse osmosis membrane technology and the in-depth use of membrane elements, the development and preparation of large-flux reverse osmosis membranes has gradually become the focus of research. Large throughput means that the energy consumption required to process the same volume of liquid is low, which can effectively save investment and equipment operating costs, and improve processing efficiency.
FAQ:
Q: How to buy your products?
Q: How to pay?
A: TT and L/C are acceptable and TT will be more appreciated. 30% deposit before producing, 70% balanced against the copy of B/L.
Q: What is the delivery time?
A: Usually within 15days. Also depends on order quantities.
Q: Can the package be customized by our own logo ?
A: Yes, the package can be customized your logo, but the MOQ will be higher for which we can discuss as per the specific orders.
Q: How to install after the products arriving destination?
A: We will provide detailed illustrations to you. And we can also provide guide to your workers how to use it and how to maintain
it.
Q:What's the certification do you have?
A: We have NSF, ISO9001, OHSAS18001, ISO14001 Certifications.
